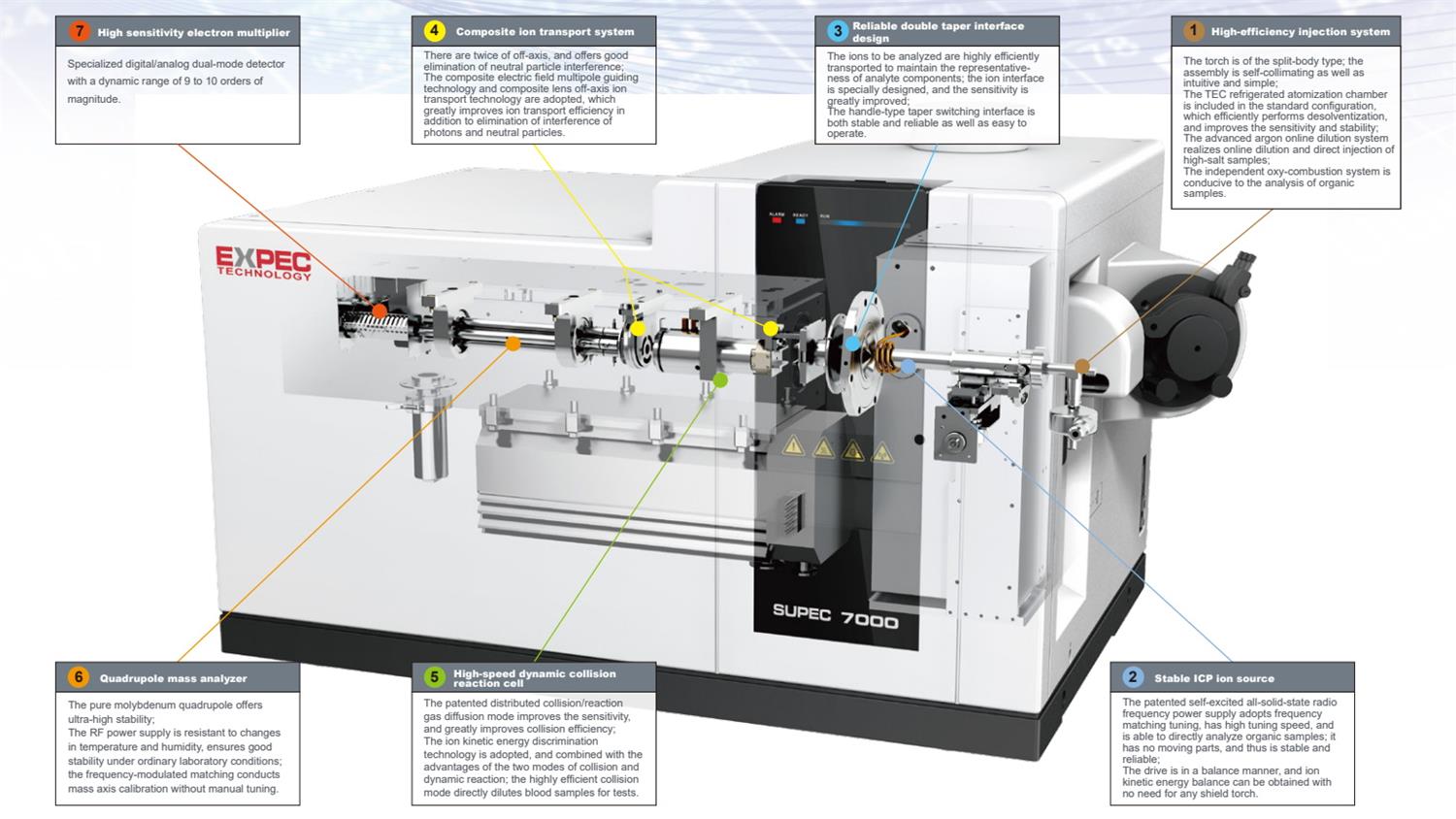

ICP-MS 7000

High sensitivity electron multiplier
Specialized digital/analog dual-mode detector with a dynamic range of 9 to 10 orders of magnitude.

High-efficiency injection system
Stable ICP ion source
Reliable double taper ion interface

Overview

High sensitivity and reliability SUPEC 7000 inductively coupled plasma mass spectrometer.
SUPEC 7000 ICP-MS was created after core technical difficulties were overcome in mass spectrometry such as flow field control of high
temperature gas, multistage gradient vacuum, high sensitivity ion interfaces, distributed collision reaction cells, quadrupole mass analyzer with temperature and humidity resistance, and etc.,

Which is combined with liquid chromatography, online gas dilution system, automatic rapid injection, oxy-combustion, laser ablation, direct injection in atmosphere, organic injection, and other specialized technologies, and meets the needs of various professional applications; at the same time, the combination of Element V, a professional mass spectrometry software system, with standard methodology library, automatic tuning, guided operation mode and visualized status monitoring at any time, greatly reduces the difficulty of the operation of the mass spectrometry software system, and meets the extensive needs of laboratory applications.

Features

Through continuous product innovation, the SUPEC 7000 series offers faster analysis speed, higher sensitivity, better interference elimination effect, as well as specialized design that makes the application easier!

Excellent sensitivity

On the basis of the aerodynamic simulation design at the junction of thermal plasma and vacuum, the ion interface is optimized, and the sensitivity of ICP-MS is increased by 3 to 5 times; and the detection limit as low as ppt is more suitable for the detection of high-purity materials and high-purity reagents.

Excellent matrix resistance

The matrix resistance of the SUPEC 7000 is so excellent that high-salt samples of up to 10% can be injected directly, which is ensured through the fluid simulation of ion interfaces, design of two off-axes in the front and at the back, patented collision reaction cells, powerful self-excited all-solid-state ICP ion source, argon online dilution, and other key technologies.

Unique design for reliability which improves stability

SUPEC 7000 is currently the only ICP-MS that can operate on-board. The product has been specially designed for shock absorption and all-solid-state, has passed comprehensive tests for road load data regarding road conditions when on board of vehicles, as well as practical application tests of tens of thousands of kilometers, and has demonstrated excellent reliability.

Specialized ICP-MS to solve special problems in applications

Fully automatic heavy metal analysis system for laboratory filter membranes, soil, and etc.
On-line monitoring system for heavy metals in surface water
On-line monitoring system for heavy metals in atmospheric particles
Heavy metal speciation analysis system based on LC-ICPMS
Solid direct injection ICP-MS solves difficulties in the analysis of solid refractory samples
On-line monitoring system on hydrometallurgical processes
On-line monitoring system for impurity metal elements in high purity reagents for semiconductors
On-line monitoring system for radionuclides at hazardous locations
